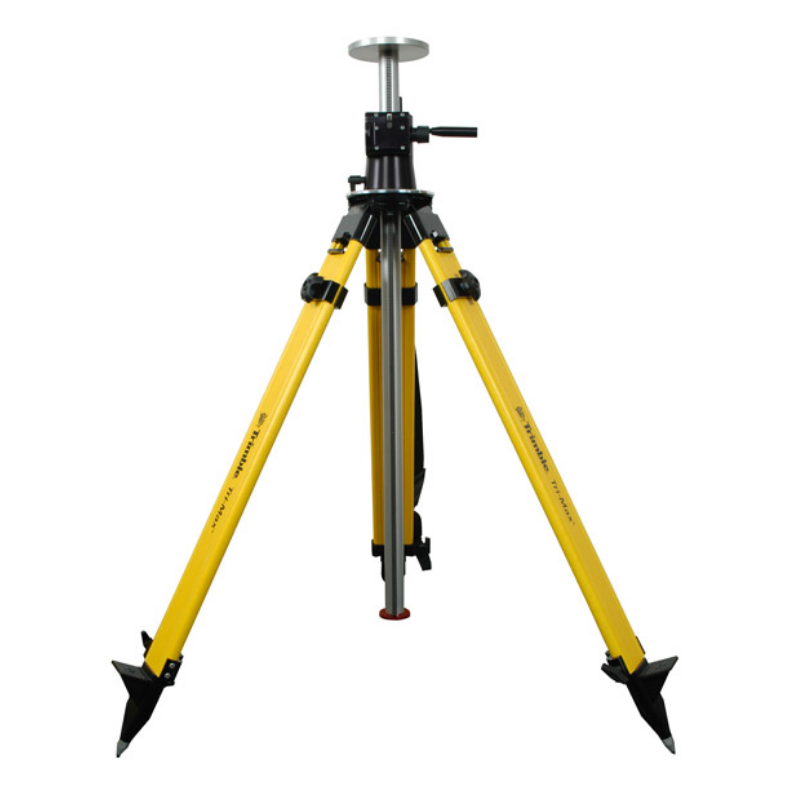

Tri-Max Universal Elevator Tripod
Details
- SECO’s Universal Tri-Max® Elevator Tripod features a working height range of 4.10 ft (1.20 m) collapsed to 8.60 ft (2.62 m) extended with the center column at full height
- The center column independently lifts 1.00 meters
- A gear box controls lift and descent so the center column cannot free fall
- Additional 1 meter section may be added for a total recommended height of 10 ft (3 m) for instruments under 15 lb (6.80 kg)
- The 5/8 x 11 mounting head is removable and adjustable in azimuth direction
- Machined-aluminum elevator column and fiberglass legs makes for a robust and easy-to-use laser instrument tripod
- Applications include laser scanning and robotics
- Fiberglass Legs
- Stable for instruments up to 25 lb (11.33 kg), under most conditions
- Weighs 29.00 lb (13.20 kg)

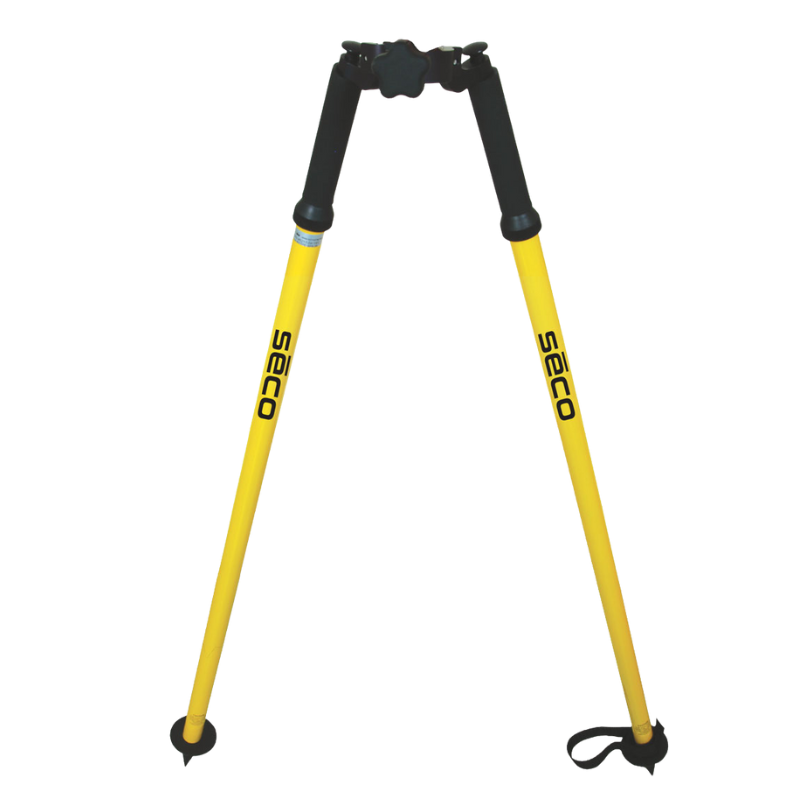

Thumb-Release Bipod – Yellow
Details
- Comes with no-crush bipod head, which prevents crushing of carbon fiber range or prism poles even when excess force is used
- Set up a freestanding GPS antenna pole or prism pole
- Poles 1-to-1.25 inch (25.4-to-31.8 mm) outside diameter attach through the open clamp
- 1.5 inch (3.81 cm) outside diameter poles can be loaded through the top
- The legs (independently) extend to 6 feet (1.8 m)
- Collapses to 43 inches (109 cm)
- Yellow
- Weighs 4.25 lb (1.93 kg)

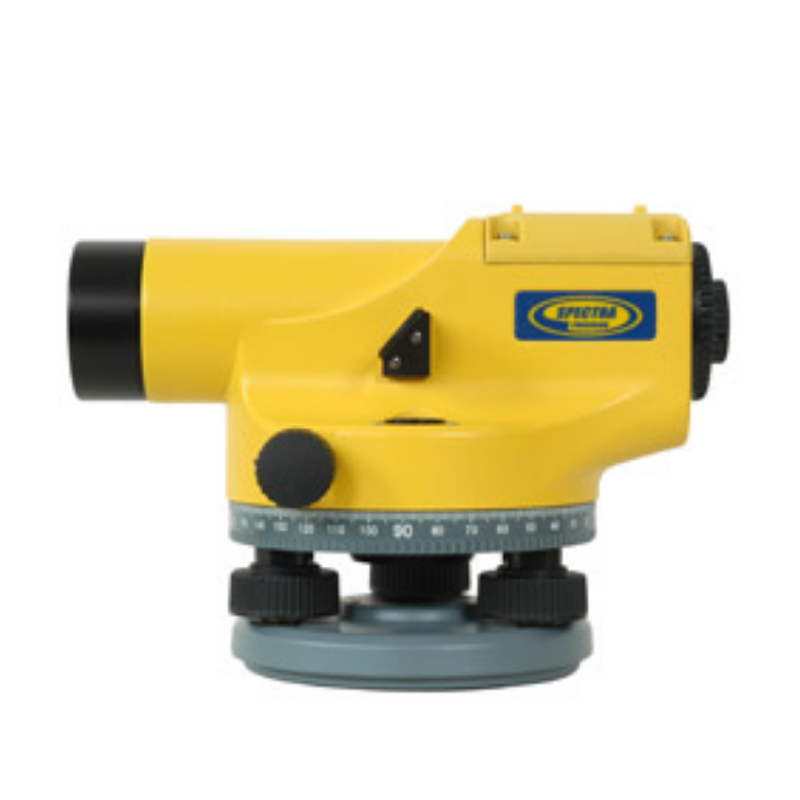

32X Air Dampened Auto Level
Details
- Features 32X magnification and air-dampened compensators
- The removable top cover makes access to the compensator easy
- Comes with an endless tangent drive, tilting mirror for easy viewing of the leveling vial and a peep sight collimator for quick pointing
- Accurate to 1/16-inch per 100 feet (in good weather conditions)
- Includes a high-quality, impact resistant padded carrying case
- The kit also includes the auto level, Allen wrench, pin tool, rain cover, and plumb bob
